Identifier Attribute

An Identifier may consist of multiple Attributes. Each Attribute component of an Identifier constitutes an Identifier Attribute, alternatively called an ‘attribute in ID’ or an ‘identifier component’.

If an Identifier consists of only a single Attribute, then it has only one Identifier Attribute which constitutes the complete Identifier. Such Identifiers are informally called ‘single attribute identifiers’.

Attributes

Identifier

Identifier.Number

Attribute

Attribute.Name

Class

Identifier.Class and Attribute.Class — The Identifier is in the same Class as the component Attribute.

Domain

Identifier.Domain and Attribute.Domain

Identifiers

  1. Identifier + Attribute + Class + Domain
    Standard Mx:Mx composition of an association class identifier with the Class and Domain attributes individually merged.

Relationships

R22

Attribute is required in zero, one or many Identifier
Identifier requires one or many Attribute

By definition, an Identifier consists of at least one Attribute. An Attribute may or may not be part of an Identifier. And it is possible for an Attribute to be a component simultaneously of multiple Identifiers. (There are numerous examples of this in the miUML metamodel itself).

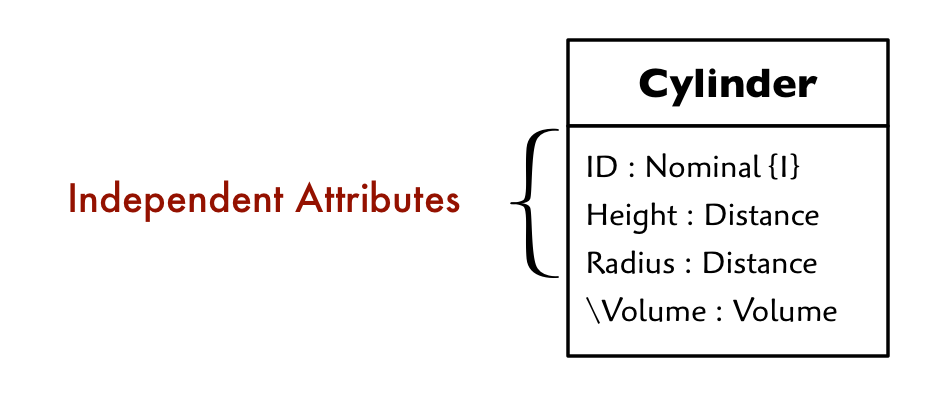

Independent Attribute

An Attribute is independent when its value is not derivable from the values of other Attributes in the same Domain at a given slice of time. An Independent Attribute may, however, be updated based on changing circumstances such as state changes, class collaborations and domain interactions, such as a command from a user interface domain, for example.



Attributes

Name

Native Attribute.Name

Class

Native Attribute.Class

Domain

Native Attribute.Domain

Identifiers

  1. Name + Class + Domain
    Same as the superclass.

Relationships

None.
