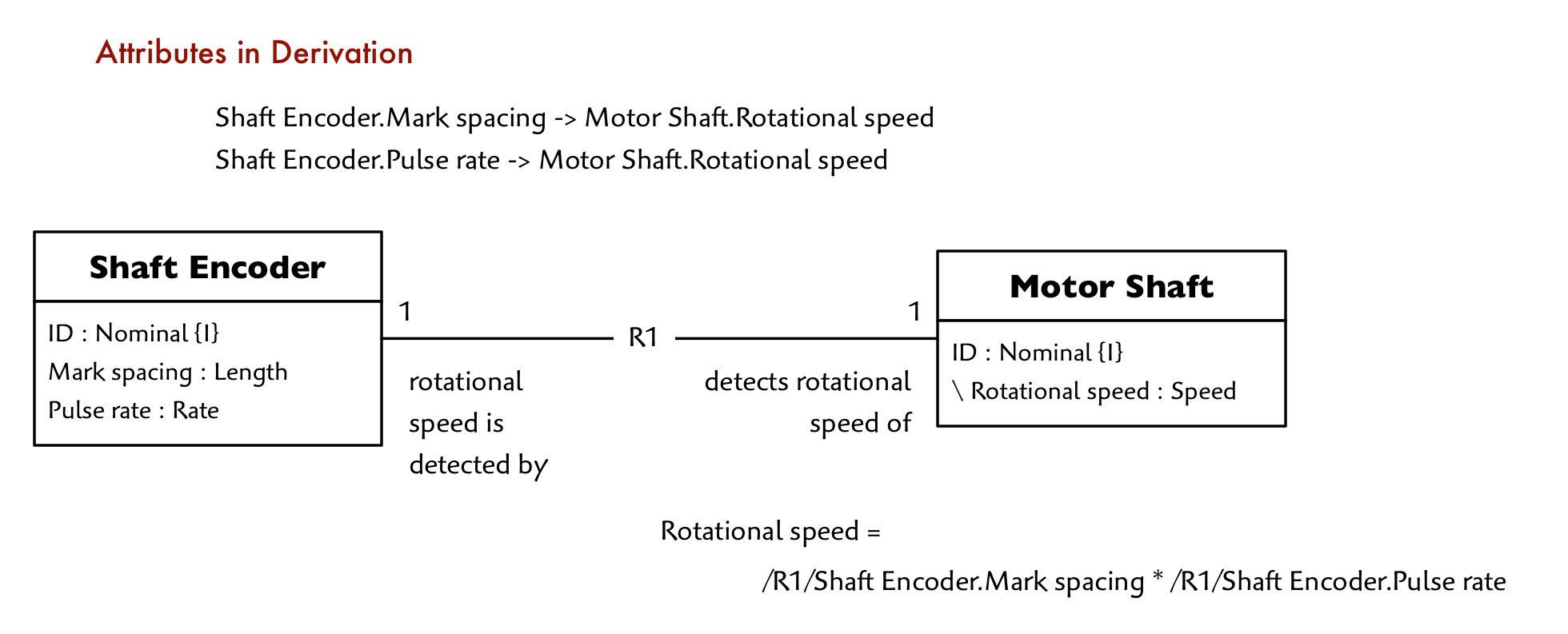

Attribute Derivation

This is an Attribute that participates in a formula to compute the value of a Derived Attribute. The specific role in the Formula is not captured as a Formula specification language has not yet been formalized in xUML.

Attributes

Source attribute - constrained

Attribute.Name — The Attribute contributing to a derivation. The value pair of Source attribute + Source class may not match the value pair of Target attribute + Target class. In other words, an Attribute may not be derived from itself.

Source class - constrained

Attribute.Class — Of the Attribute contributing to a derivation. See Source attribute above.

Target attribute

Derived Attribute.Name — The value of this Attribute is derived, in part, from the Source attribute.

Target class

Derived Attribute.Class — Of the Attribute that is derived.

Domain

Attribute.Domain and Derived Attribute.Domain — The Domain of both Source and Target Attributes.

Identifiers

  1. Source attribute + Source class + Target attribute + Target class + Domain
    Standard association class Mx:Mx identifier composition with the Domain attribute merged.

Relationships

R26

Derived Attribute is derived from one or many Attribute
Attribute contributes to the value of zero, one or many Derived Attribute

By definition, a Derived Attribute must be computed from at least one other Attribute.

An Attribute of any type, including Derived, may contribute to the computation of a Derived Attribute (other than itself). The specific role, or roles played by an Attribute in Derivation is determined by the Formula specified for the Derived Attribute.
